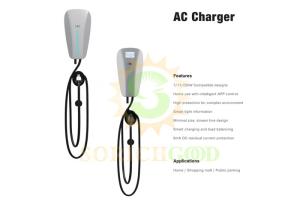

The AC Charger Smart Technology and Durability for Residential and Commercial
Product Description:
The AC Charger, designed for residential, shopping mall, and public parking applications, integrates smart charging technology with a sleek, minimalistic design. It supports a wide range of outputs from 7kW to 22kW, making it compatible with various electrical systems and vehicles. This charger features advanced safety protocols including a 6mA DC residual current protection, ensuring high protection for complex environments. With its IP55 and IK08 ratings, the charger is built to withstand indoor and outdoor conditions effectively. Additionally, its smart interface capabilities, including BLE5.0, RS485, and optional 4G/WIFI connectivity, allow for seamless integration with smart home systems.
| Model | LSACS-E
-32/230 | LSACS-U
-32/230 | LSACS-U
-50/230 | LSACS-E
-16/400 | LSACS-E
-32/400 |
| Rated power | 7kW | 7kW 11kW | 11kW | 22kW |
| Voltage | | 220~240VAC | 380~415VAC |
| Power supply | | P+N+PE | 3P+N+PE |
| Current | 32A | 32A 50A | 16A | 32A |
| Frequency | 50/60Hz |
| Charge plug | Type2 | Type1 Type1 | Type2 | Type2 |
| Cable length | 3/5m(include connector) |
| Enclosure | | ABS+PC(MR technology) |
| LED indicator | Green/Yellow/Blue/Red |
| LCD display | 43”color LCD (Optional) |
| RFID | Non-contact(ISO/IEC14443A) |
| Start method | QR code/Card/BLE50/PnC |
| Interface | BLE5.0/RS485,Ethernet/4G/WIFI (Optional) |
| Protocol | OCPP1.6J/2.0J(Optional) |
| Energy Meter | Onboard Metering,Accuracy level1.0 |
| Emergency stop | Yes |
| RCD | 30mA TypeA+6mA DC |
| EMC LEVEL | CLASS B |
| Protection grade | IP55 and IK08 |
| Certification | CE,CB,KC |
| Standard | EN/IEC 61851-1,EN/IEC 61851-21-2 |
| Installation | Wall mounted/Floor mounted |
| Temperature | -25℃~+55℃ |
| Humidity | 5%~95% |
| Atitude | ≤2000m |
| Product size | | 218×109×404(W×D×H,mm) |
| Net weight | 3.6kg | 36kg 4.5kg | 4.0kg | 5.0kg |
| Remarks:specifications are subject to change without notice |
Application:
Ideal for home use, the AC Charger is also perfectly suited for installation in commercial settings such as shopping malls and public parking lots. Its intelligent app control enables users to manage charging remotely, making it a convenient solution for modern electric vehicle users. The charger's streamlined design and smart light indicators provide a user-friendly experience while maintaining efficient load balancing and energy management. This charger not only meets the demands of everyday use but also complements the aesthetics of modern infrastructure.
Shipping Methods
Supports global air and sea shipping.
